Besides using the goodness of Azure Container Services (ACS). Different Azure services like Azure Container Registry (ACR) and Azure Container Instances (ACI) can be used and connected from independent container orchestrators like kubernetes (k8s). This post will explain how to set up a custom ACR and connect it to an existing k8s cluster to ensure images will be pulled from the private container registry instead of the public docker hub.

Updated Article Available

This article was initially published in August 2017. Both AKS and ACR are growing fast since that time. With recent releases of Azure CLI, integrating ACR with AKS became easier. That said, I’ve published a new article on AKS and ACR integration.

Read “3 Ways to integrate ACR with AKS” now

Setting up the Azure Container Registry

Although the recent Azure portal is providing a rich user experience, all Azure related stuff in this post will be scripted using the latest Azure CLI 2.0. If you haven’t installed Azure CLI 2.0 yet, you can find detailed instructions here.

First, you need to login in order to get access to all your Azure subscriptions.

az login

Once logged in, you can select any of your subscriptions. You can list all subscriptions using

az account list

Select the suggested subscription by invoking the following script (replace <SUBSCRIPTION_ID> with the id of your subscription).

az account set --subscription <SUBSCRIPTION_ID>

Creating an Azure Resource Group

Either you can use an existing Azure Resource Group or create a new using:

az group create --location northeurope --name <RESOURCE_GROUP_NAME>

You can list all available locations by using az account list-locations.

Provisioning an Azure Container Registry

An Azure Container Registry (ACR) can also be created using the new Azure CLI.

az acr create
  --name <REGISTRY_NAME>
  --resource-group <RESOURCE_GROUP_NAME>
  --sku Basic

Once the ACR has been provisioned, you can either enable administrative access (which is okay for testing and described later) or you create a Service Principal (sp) which will provide a client_id and a client_secret.

az ad sp create-for-rbac
  --scopes /subscriptions/<SUBSCRIPTION_ID>/resourcegroups/<RG_NAME>/providers/Microsoft.ContainerRegistry/registries/<REGISTRY_NAME>
  --role Contributor
  --name <SERVICE_PRINCIPAL_NAME>

Before executing this script ensure that you replace all tokens being used in the script above. You need to provide the subscription id, the resource group name, the ACR name and a meaningful name for your service principal. You may have noticed the role parameter which is set to Contributor. ACR supports three different roles:

  • Owner: (pull, push, and assign roles to other users)
  • Contributor: (pull and push)
  • Reader: (pull only access)

Once the service principal has been created, copy the client_id (named appId in the response) and the client_secret (named password in the response). You’ll need those in a few seconds.

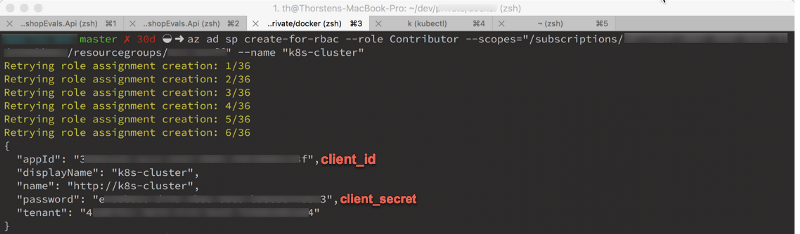

Create Service Principal Response

To keep things simple, we’ll create a single service principal for now. For real-world scenarios, you may create multiple service principals with different roles. As a developer, you want to push new images to the registry. (So you become a Contributor). Your container cluster, on the other hand, may only pull images from the registry. So you should create a second service principal with the Reader assigned.

Once you made it through the previous steps, it’s time to take care of Docker and Kubernetes. Without any further configuration, both docker and kubernetes will push and pull images from the public docker hub. So let’s change this now and bring in the ACR goodness.

Login from Docker CLI

In order to push images to the newly created ACR instance, you need to login to ACR form the Docker CLI.

docker login <REGISTRY_NAME> -u <CLIENT_ID>

You can also pass the client_secret directly to the docker login command, but keep in mind that both client_id and client_secret will be visible in your bash history. docker login will prompt for the client_secret (password) when you execute the command as shown above.

Pushing a Docker image to ACR

Once logged in, you can push any existing docker image to your ACR instance. Before you can push the image to a private registry, you’ve to ensure a proper image name. This can be achieved using the docker tag command. For demonstration purpose, we’ll use Docker’s hello world image, rename it and push it to ACR.

# pulls hello-world from the public docker hub
docker pull hello-world

# tag the image in order to be able to push it to a private registry
docker tag hello-word <REGISTRY_NAME>/hello-world

# push the image
docker push <REGISTRY_NAME>/hello-world

Configure Kubernetes to use your ACR

When creating deployments, Replica Sets or Pods, Kubernetes will try to use docker images already stored locally or pull them from the public docker hub. To change this, you need to specify the custom docker registry as part of your Kubernetes object configuration (yaml or json).

Instead of specifying this directly in your configuration, we’ll use the concept of Kubernetes Secrets. You decouple the k8s object from the registry configuration by just referencing the secret by its name. But first, let’s create a new Kubernetes Secret.

kubectl create secret docker-registry <SECRET_NAME>
  --docker-server <REGISTRY_NAME>.azurecr.io
  --docker-email <YOUR_MAIL>
  --docker-username=<SERVICE_PRINCIPAL_ID>
  --docker-password <YOUR_PASSWORD>

If you want to prevent your client_secret from being stored in bash history, you can for example use read -s DOCKER_PASSWORD and provide $DOCKER_PASSWORD as value for the --docker-password parameter.

Create Pods, Replica Sets, and Deployments using the Secret

No matter which Kubernetes object you’re going to create, you can easily bring Secrets into consideration using the spec.imagePullSecrets configuration value. As an example see the following yaml file describing a simple pod which will pull the hello-world image from the ACR instance to your Kubernetes nodes and uses that image to create the containers.

apiVersion: v1
kind: Pod
metadata:
  name: private-hello-world
spec:
  containers:
  - name: private-hello-container
    image: <REGISTRY_NAME>.azurecr.io/hello-world
  imagePullSecrets:
  - name: <SECRET_NAME>

You can save the pod configuration to as a local file like pod-sample.yaml and deploy it using kubectl by invoking:

kubectl create -f pod-sample.yaml

Once your pod has been provisioned, you can see detailed information about the pod and the docker image, which has been pulled from ACR using kubectl describe pod <POD_NAME>.

Pod Events listed by using kubectl describe pod

That’s it. You’ve successfully deployed an ACR, configured it with a docker installation and hooked it up in Kubernetes. 🤘 🚀
